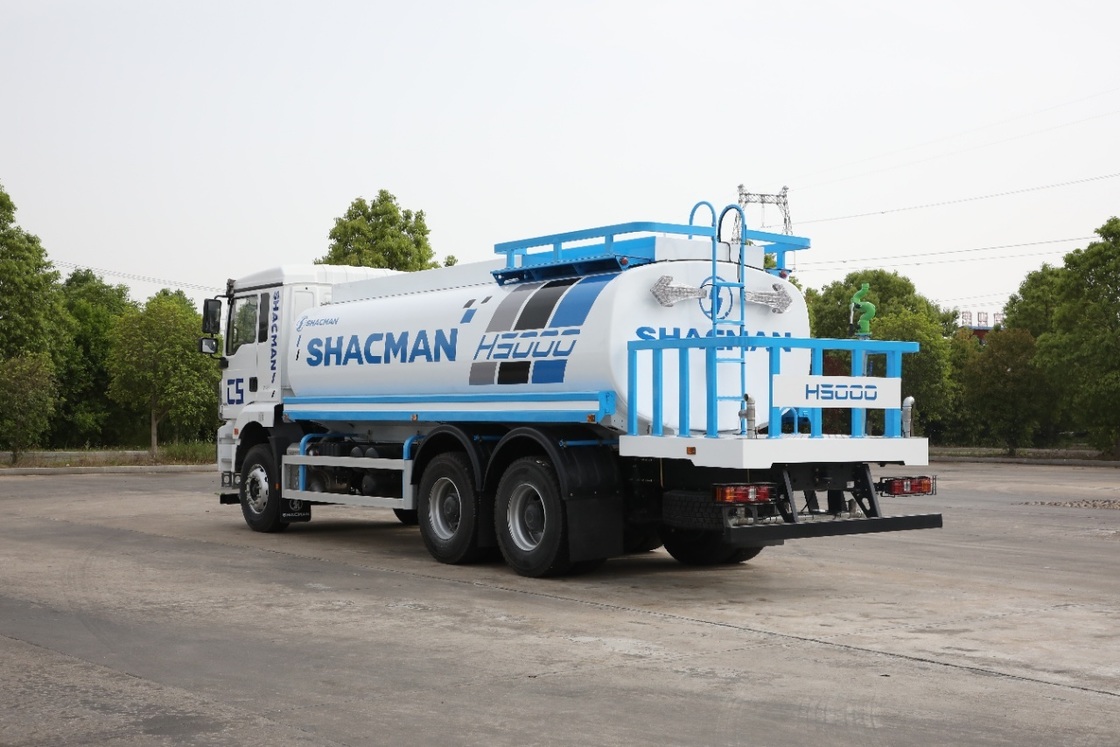

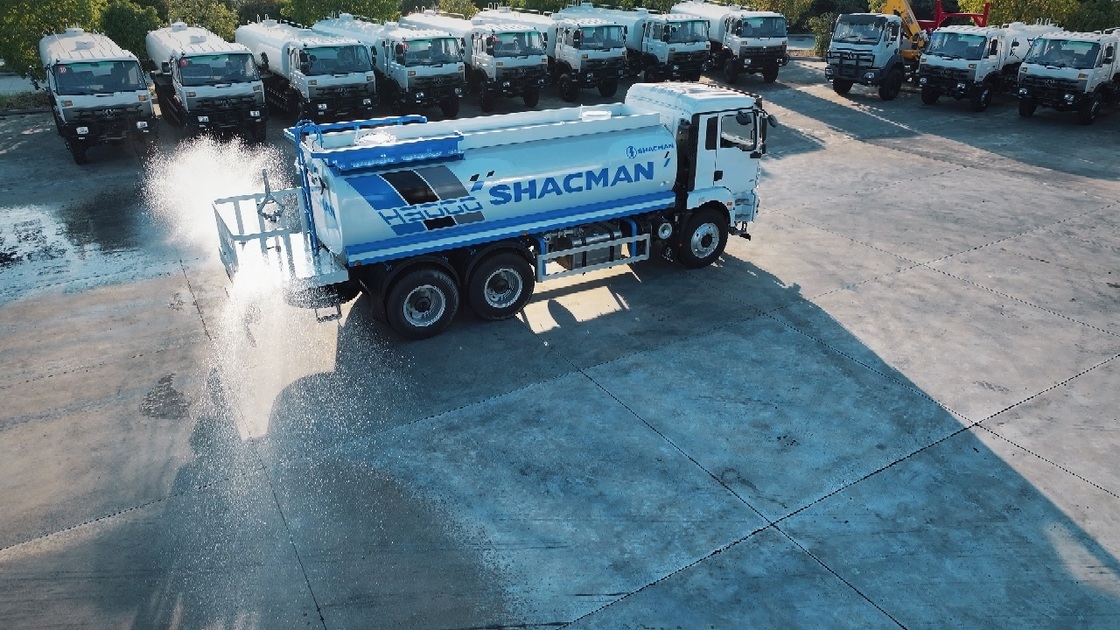

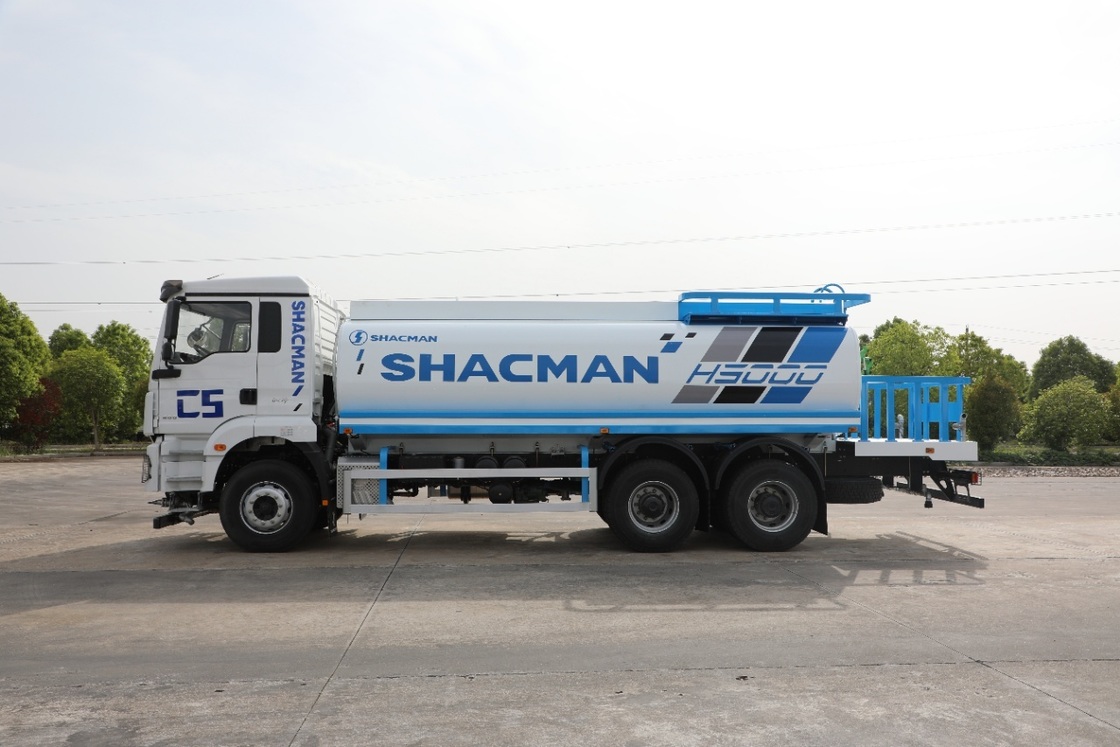

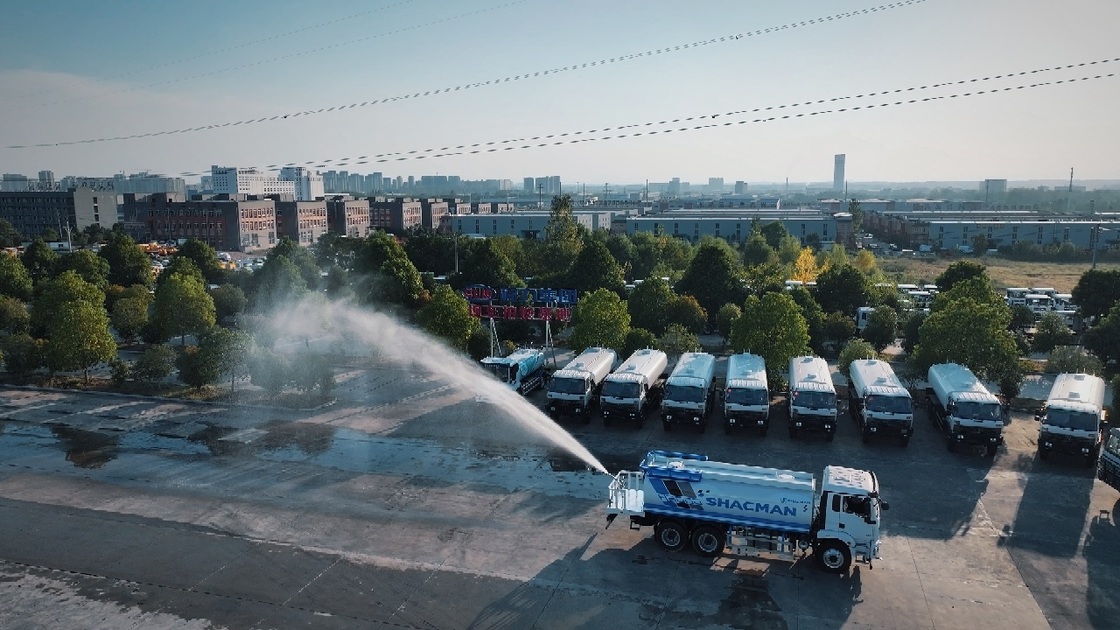

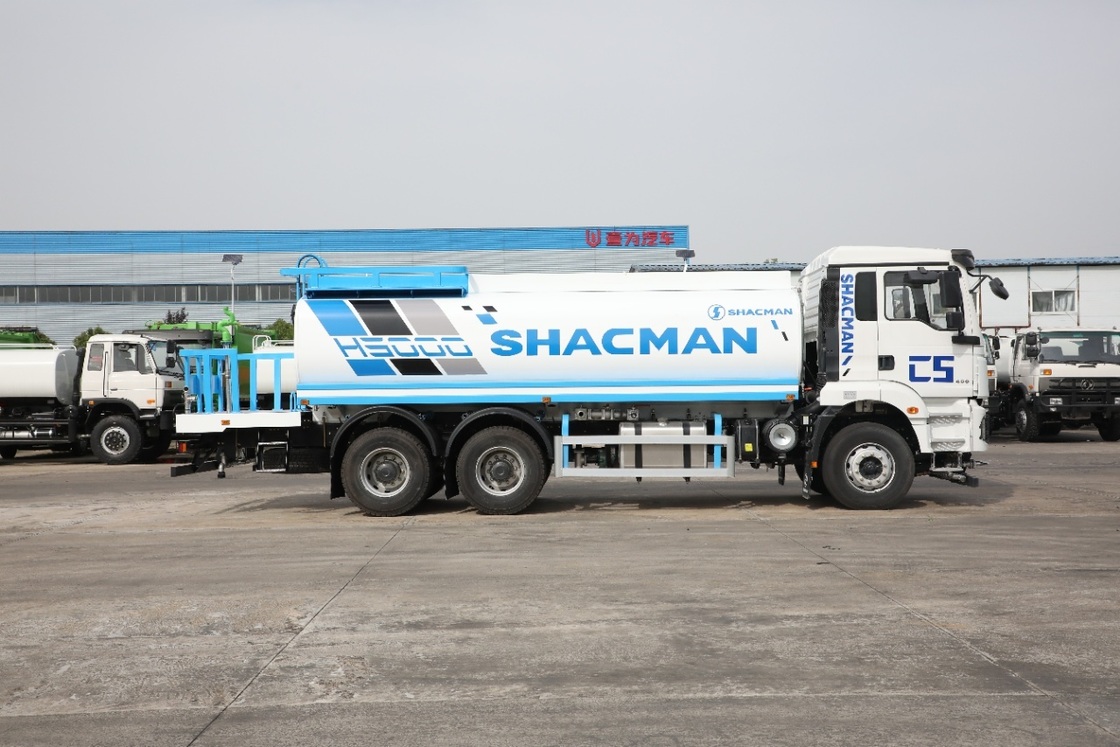

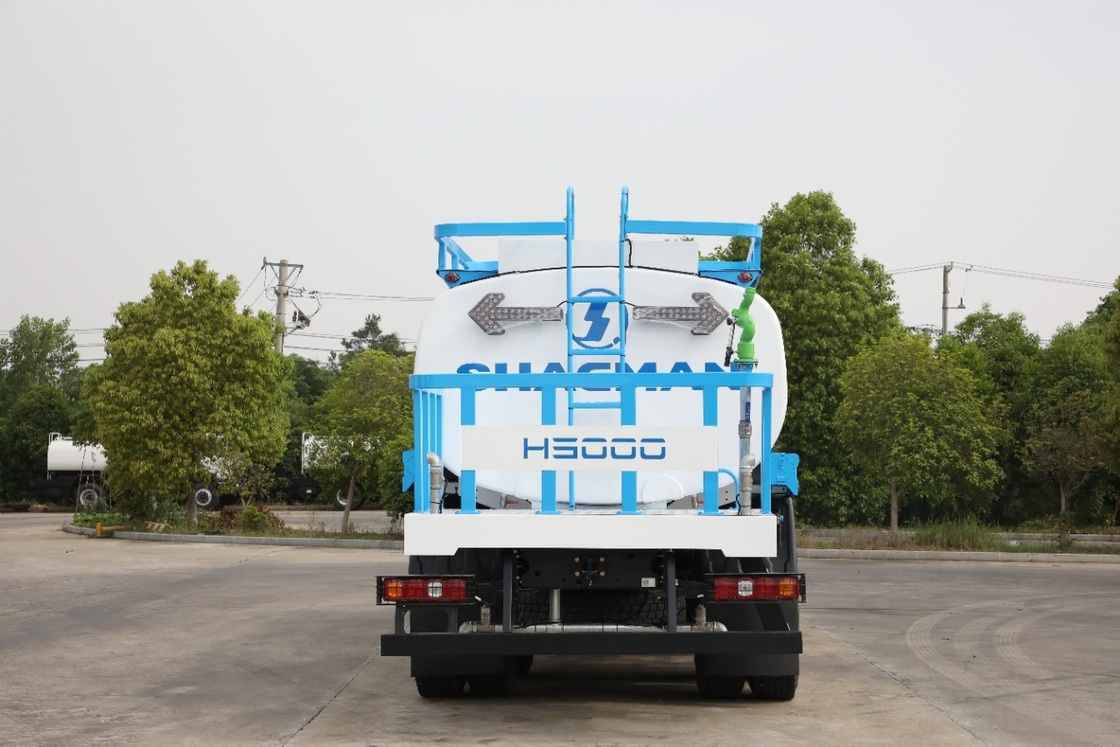

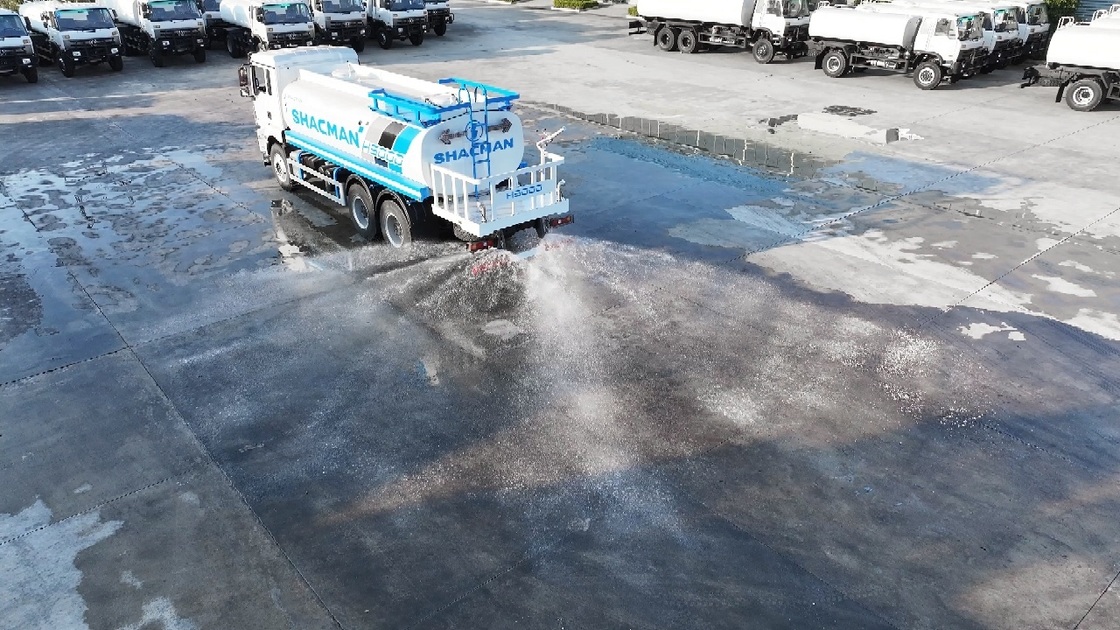

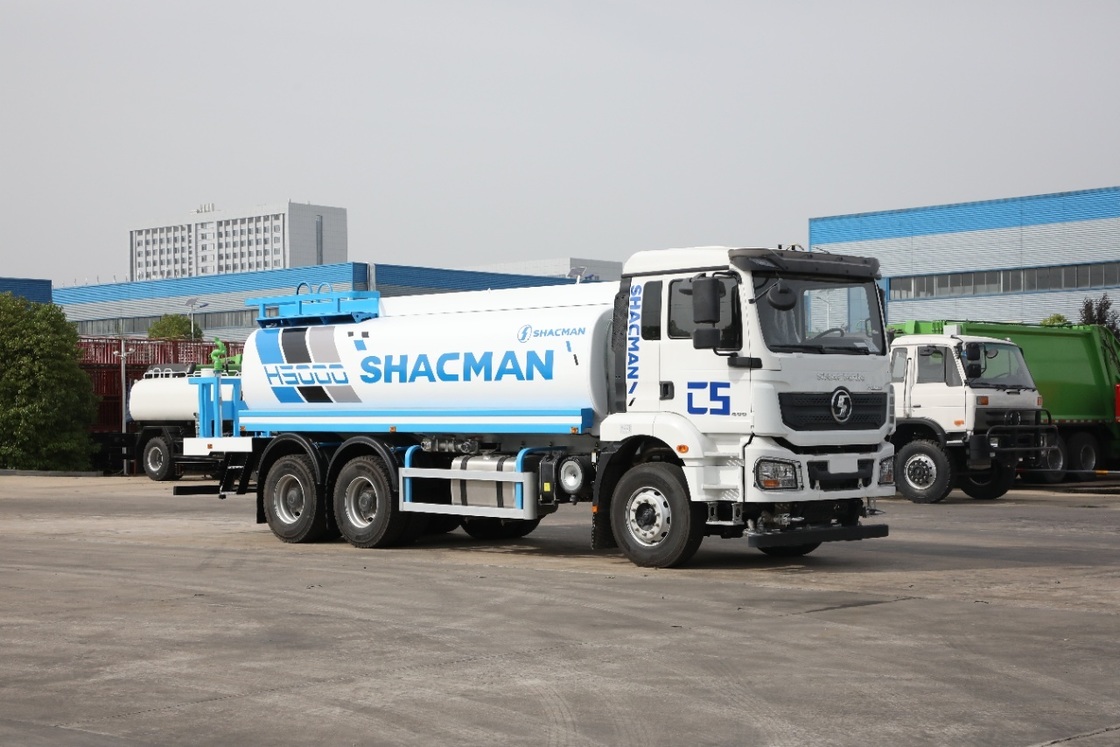

원래 장소:
중국
브랜드 이름:

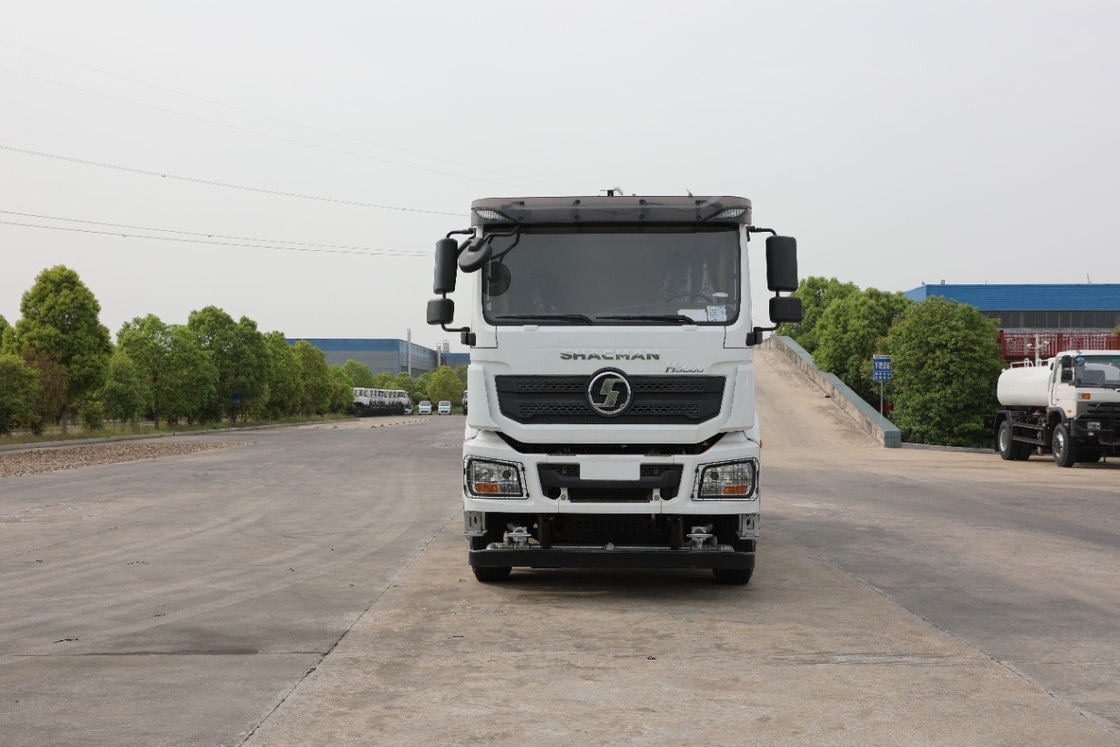

SHACMAN H3000
모델 번호:
SX5185GYSMN461
| Model | SX5185GYSMN461 |
| Drive type | 4X2 |
| Wheelbases | 4600mm |
| Rear overhang | 1900mm |
| Driving position | Left-hand drive |
| Economic speed/Maximum speed | 50～70/90 km/h |
| GVW | ≤20T |
| Brand | WEICHAI |
| Model | WP10.336 |
| Horsepower | 336HP |
| Emission standards | Euro Ⅲ |
| Gear box brand | FAST |
| Gear box model | RTD-11509C+QH50 PTO (9 forward gears, 1 reverse gear) |
| Chassis dimensions | 850*300(8+5)mm |
| Suspension | Front and rear multi-leaf springs (two riding horses + two main pieces) |
| Braking method | Disc brakes |
| Axle brand | HANDE |
| Front axle | 7.5T front axle |
| Rear axle | 13T dual-stage reduction axle |
| Speed ratio | 5.262 |
| Tires | 13R22.5 (6+1) |

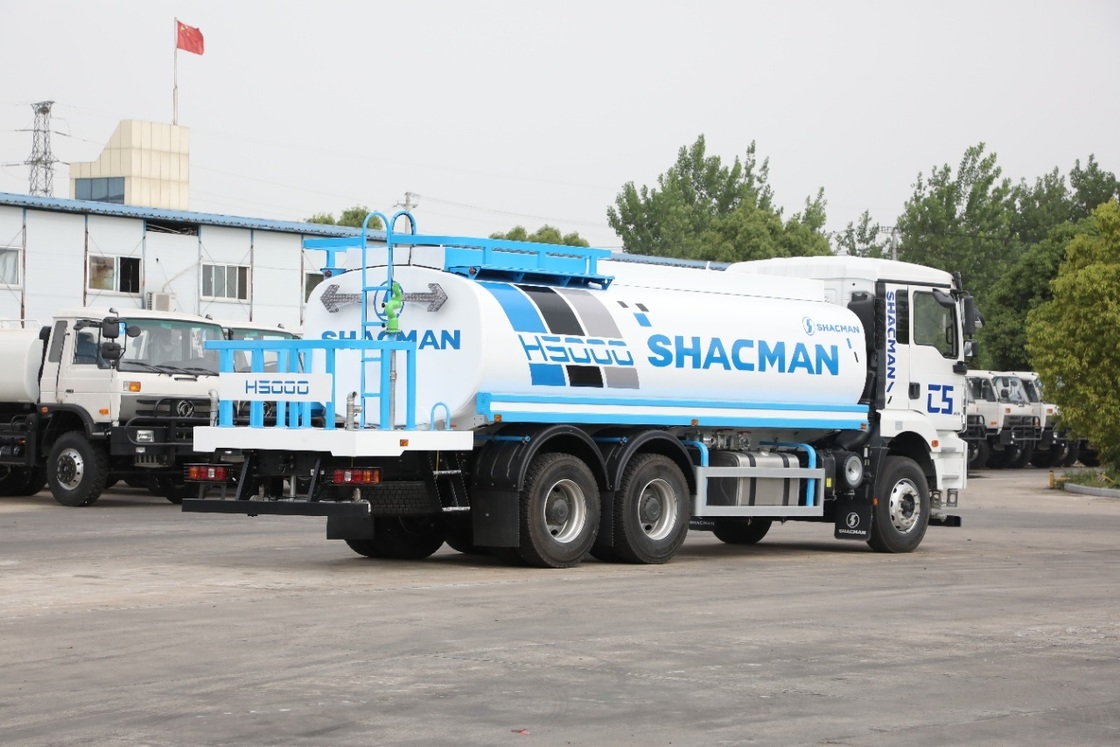

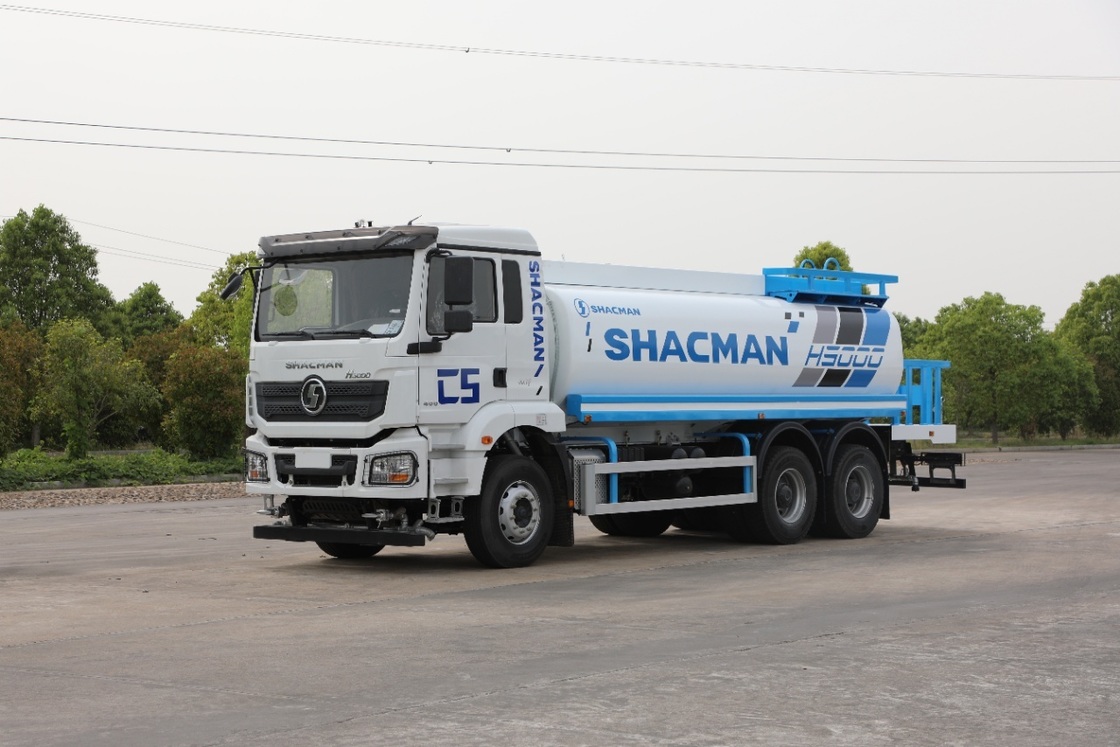

| Effective volume | 10m³ |
| Tank body shape | Oval |
| Tank material | Food-grade stainless steel SUS304-2B |
| Number of wave deflectors | 2 |
| Thickness of wave deflector | 4mm |
| Welding technology | Argon arc welding process |
| Valve material | SUS304 butterfly valve |
| Tank body and mouth | 1 DN500 stainless steel |
| Pipe material | SUS304 stainless steel |

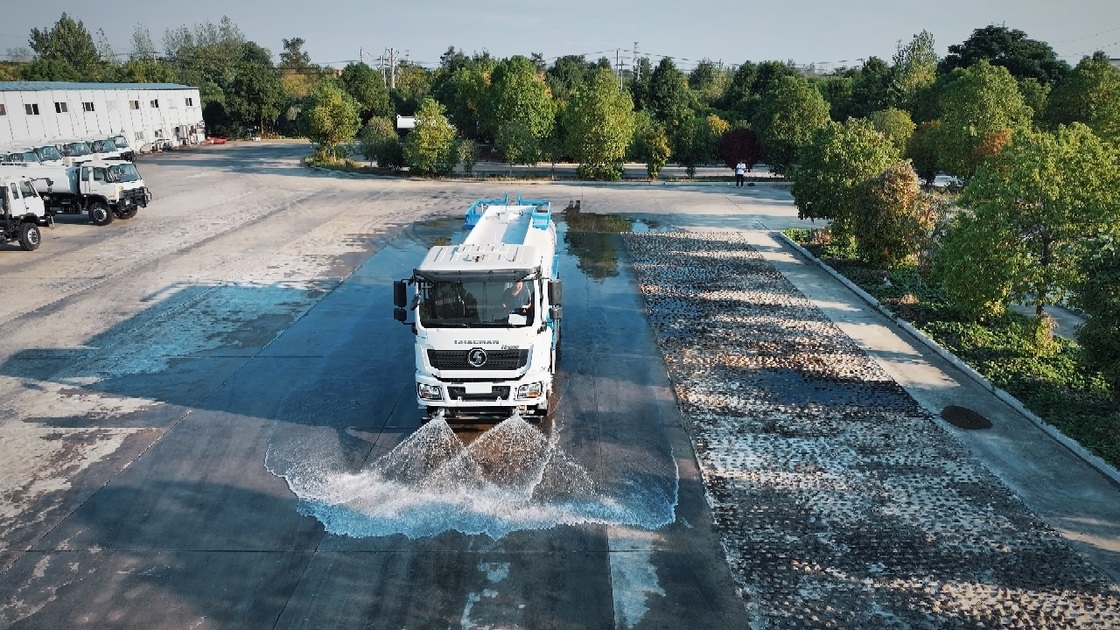

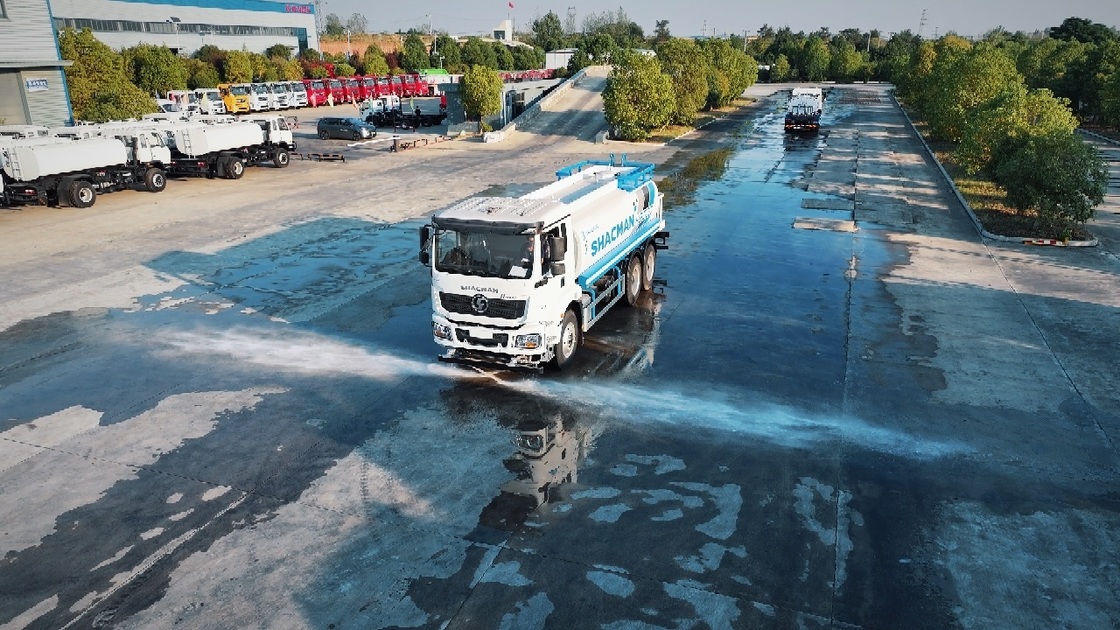

| Water addition method | Self suction/fire water supply/tank top |
| Inside the tank | Acid pickling and passivation treatment |
| Supporting system | Reinforcement of auxiliary beams |
| Truck-mounted pump | Hangzhou Weilong 40/45 stainless steel car mounted pump with water level gauge and flow meter |
| Control ball valve | Stainless steel |
| Control mode | Pneumatic control in the cab |
| Main pipeline diameter | 50 |
| Auxiliary pipeline diameter | 50 |
